Rain Master DX3

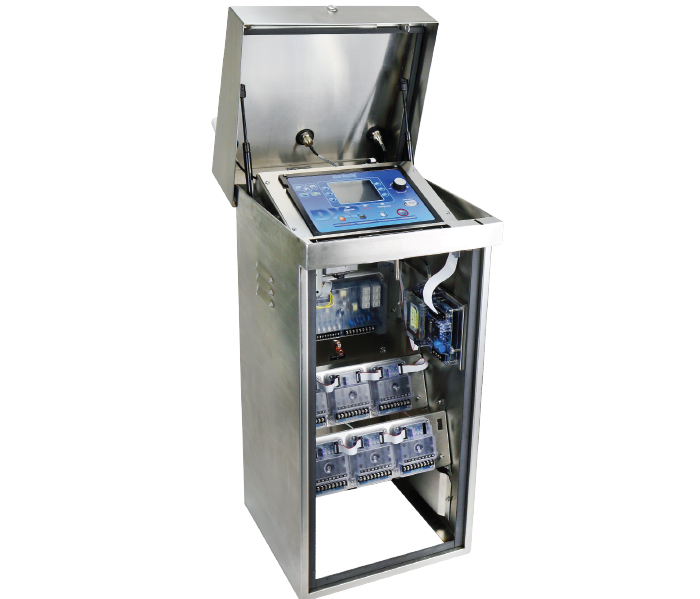

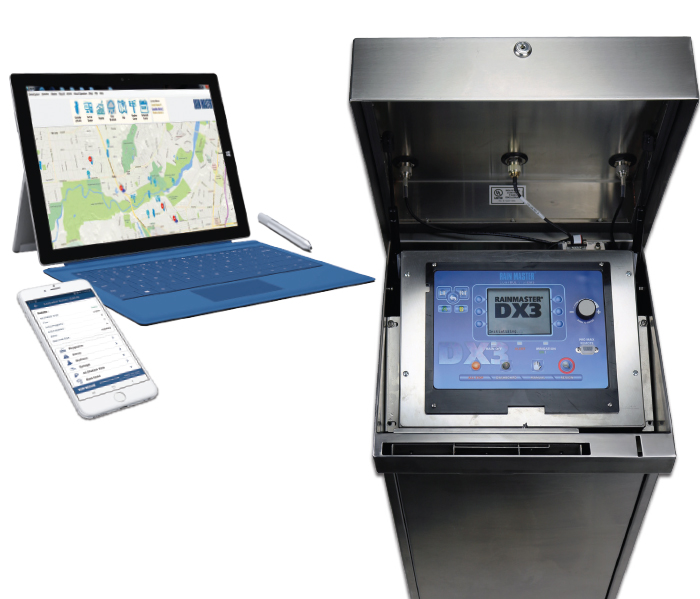

The Rain Master® DX3™ (Powered by Laguna™ Landscape Management Software) is loaded with features one would expect from a highly capable central control system. Laguna provides Central Irrigation Water Management; featuring Windows®* drop down menus, visual positioning, graphical presentation, and customizable reporting. The DX3 was designed with the busy field installer/operator in mind and includes the free ProMax™ Connect App for convenient mobile water management from anywhere, anytime. This system provides functional consistency and a level of backward compatibility with past DX2 systems for efficient upgrade installations. DX3 patent-pending innovations such as the e-paper LCD display, soft key interface and “fridge light” will enhance performance and serviceability for years to come.


Locate a Distributor

Watch Videos

Key Features

DX3 Features:

  • 8-96 stations conventional/200 stations 2-wire
  • 16 programs + independent station control (ISC)
  • 12 start times per program
  • Dedicated port for up to 3 master valves, 3 flow sensors & 2 pumps
  • “Electronic paper-style” LCD display for use in heavy sunlight, integrated LED backlight for dark conditions (superior contrast level)
  • Custom-fit clear covers for all electrical boards
  • Industrial lightning/surge protection comes standard
  • 5-year limited warranty

CUL Listed
FCC
Maximum Output per Station
24V ac, 2,75 amps
Maximum Output to Valves
24V ac, 2,75 amps (including master valve/pump start circuit)
Start Times (Number of Start Times)
16 per program + independent station control (ISC)
Transformer Input
100-120VAC, 50/6-HZ

Models Description
DX3-PWMTW 2-WIRE ASSEMBL
DX3-PWM08 8-STATION ASSEMBLY
DX3-SWMTW 2-WIRE ASSEMBLY
DX3-SWM08 8-STATION ASSEMBLY
DX3-SPEDTW 2-WIRE ASSEMBLY
DX3-SPED08 8-STATION ASSEMBLY
DX3-SPEDHY08 8-STATION HYBRID ASSEMBLY
DX3-PSBTW 2-WIRE ASSEMBLY
DX3-PSB08 8-STATION ASSEMBLY
DX3-DPSB56 56-STATION ASSEMBLY
DX3-PPEDTW 2-WIRE ASSEMBLY
DX3-PPED08 8-STATION ASSEMBLY

Dimensions Description
PWM H: 23”, W: 19”, D: 8”
SWM H: 23”, W: 19”, D: 9”
SPED H: 35”, W: 16”, D: 14”
PSB H: 38”, W: 16”, D: 15.5”
DPSB H: 38”, W: 24”, D:17”
PPED H: 35”, W: 16”, D: 14”

2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
56-STATION ASSEMBLY
56-STATION ASSEMBLY

2-WIRE ASSEMBLY
8-STATION ASSEMBLY
8-STATION ASSEMBLY
8-STATION ASSEMBLY
8-STATION ASSEMBLY

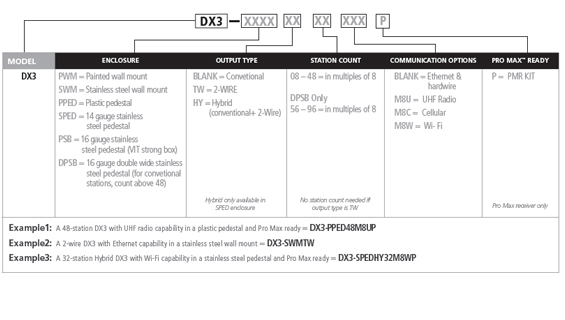

Spect DX3
