KD2 SERIES offers a unique combination of sophisticated features and familiar operation, making it the ideal residential controller from Irritrol®. Its automatic, semi-automatic and manual operations, a wide range of watering intervals, and the ability to make percentage changes to watering duration for seasonal adjustments provides excellent scheduling flexibility. Electrical surge protection, self-diagnostic function, an electronic circuit breaker, and a five-year warranty provide peace of mind for years to come. In addition, non-volatile memory maintains program information and built-in memory maintains date and time when AC power is lost. KD2 SERIES is compatible with the CLIMATE LOGIC® Weather Sensing System which adjusts run time based on on-site weather information and the SMRT Logic® gateway for app-based remote system control.

Climate Logic® Compatible

Turn the controller into a weather-based program using an on-site wireless weather sensor.

SMRT Logic® compatible

Provide remote control from any internet connected device

Three independent programs

Allows differing watering days, start times, station run times and station assignments

Multiple watering day options

  • Provides flexibility to meet water restrictions and diverse plant requirements
  • Days-of-the-week watering
  • Odd/even date watering with 31st day skip
  • Repeating-day-interval watering (every day, every 2nd day, every 3rd day, etc., up to once every 31 days)
  • Excluded-day option, when used with the Odd/even day or day-interval

Compatible with CRR Series hand-held remote system

Provides convenient remote station start/pause/resume/off capability (R-100-KIT) for supplemental watering or inspection

Self-diagnostic, electronic circuit breaker

Identifies and overrides an electrical “short” in a valve or in valve wiring and continues to water operable stations

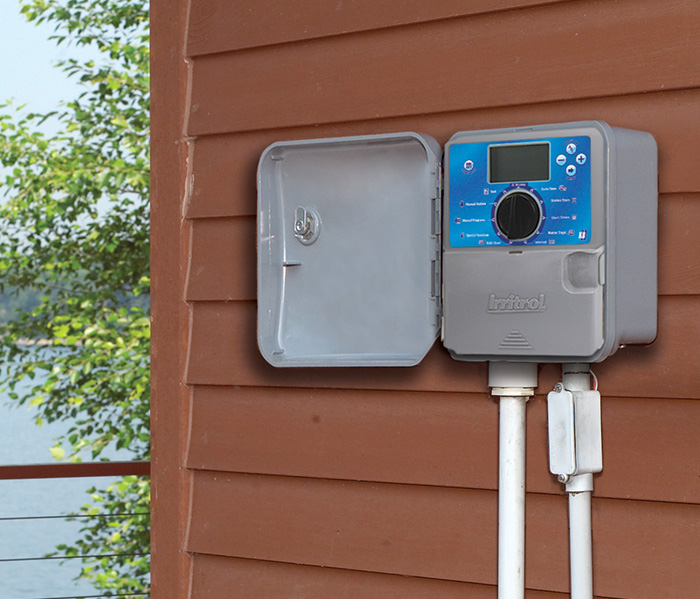

Full family of indoor and outdoor models

Ensures a product to match any landscape

RainSensor™ ready

Sensor bypass switch and terminal for sensor hookup

5-year warranty

5-year warranty

One station valve plus a master valve (or 24 V ac pump start relay) on at a time
CUL Listed
Maximum Output per Station
24 V ac, .4 amp
Maximum Total Output
24 V ac, .8 amp (including master valve)
Transformer Input
120 V ac, 60HZ (220/240 V ac, 50 Hz)
Transformer Output
24 V ac, 1.250 amps
UL Listed

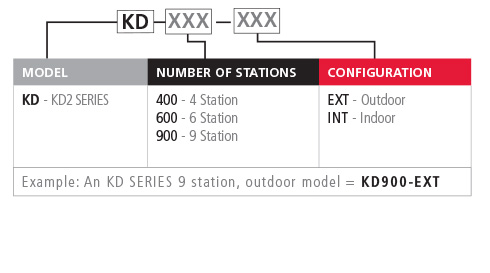

Models Description
KD400-EXT 4 -Station Outdoor
KD600-EXT 6-Station Outdoor
KD900-EXT 9-Station Outdoor
KD400-INT 4 -Station Indoor
KD600-INT 6-Station Indoor
KD900-INT 9-Station Indoor
Dimensions Description
Outdoor H: 8”, W: 6”, D: 4.5”
Indoor H: 8”, W: 6”, D: 4.5”
CL-100-Wireless Weather Sensing System
SMRT Logic Wireless Gateway
CRR remote series (R-100-KIT)
RS1000 wireless RainSensor™
RFS1000 wireless rain/freeze sensor
RS500 wired RainSensor™
SR-1 pump start relay
