LXC Series


LXC Series Controllers are Irritrol’s premier irrigation management solution designed to provide large-scale residential and light-commercial contractors with the flexibility of conventional or two-wire control, straight-forward operation, and contractor specific convenience features.

For More Information


Locate a Distributor

Watch Videos

Key Features

Convenient and easy to use

Familiar dial functionality, a large color display and intuitive navigation buttons ensure a short learning curve and quick start up

Two-wire compatible

2-Wire models with 60 and 100 stations makes LXC a convenient, economical and easy to manage choice for large residential or light commercial job sites

8 program and 8 start times

Standard 8 programs, each with 8 start times, and the ability to run up to four simultaneous stations or programs.

Flexible station capacity

With 12 fixed stations and modular station expansion up to 52 stations, LXC is ideal for a wide variety of standard system installations or expansions

Hassel free installation

Station modules’ quick connect feature and confirmation LED automatically aligns the module and confirms a secure connection

Efficient weather-based watering

Compatible with Irritrol Wireless Weather Sensor to automatically adjust watering schedules based on site specific weather conditions

Anytime anywhere water management

Save labor hours and reduce response time with SMARTscape™ to quickly control and manage LXC and other Irritrol controllers from a PC or mobile device

Capacity
Up to 4 simultaneous stations or programs
CSA Listed
Maximum Output per Station
24V AC, .5 amps (4-stations max, plus 2 pump/master)
Maximum Total Output
24V AC, 50/60Hz, 1.6 amps
Station Run Times
1-24 hours in 1-minute increments
Transformer Input
120V AC, 50/60Hz, .7 amps
UL Listed
Watering Schedule (Irrigation Schedule)
  • Any day of the week
  • Skip days from 1 to 31 days between irrigation days
  • Odd or even date watering

Models Description
LXC12-I 12 station, indoor with plastic wall mount
LXC12 12 station, outdoor with plastic wall mount
LXC12-M 12 station, outdoor with painted metal wall mount
LXC12-S 12 station, outdoor with stainless wall mount
LXC60 60 station, 2-wire, with plastic wall mount
LXC60-M 60 station, 2-wire, with painted metal wall mount
LXC100 100 station, 2-wire, with plastic wall mount
LXC100-M 100 station, 2-wire, with painted metal wall mount
LXC100-S 100 station, 2-wire, with stainless wall mount
LXC8-MOD LXC 8 Standard Expansion Module
LXC-SMRT-R Radio Communication Card
Dimensions Description
PWM H: 23”, W: 19”, D: 8”
SWM H: 23”, W: 19”, D: 9”

2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
2-WIRE ASSEMBLY
56-STATION ASSEMBLY
56-STATION ASSEMBLY

2-WIRE ASSEMBLY
8-STATION ASSEMBLY
8-STATION ASSEMBLY
8-STATION ASSEMBLY
8-STATION ASSEMBLY

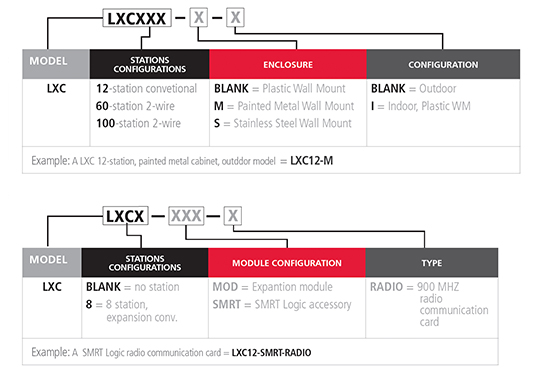

LXC Specifiying Information
