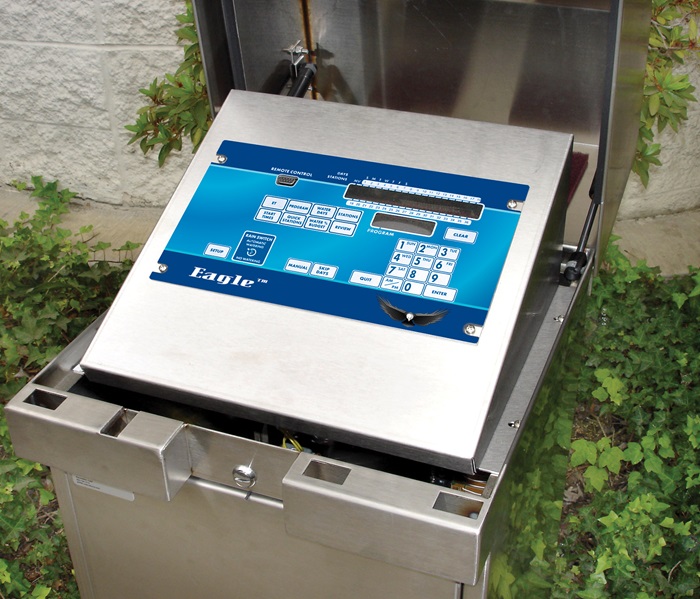

The Rain Master Eagle™ combines classic controller programming with cutting edge features, including an optional weather station. Optimized for simplicity, the Eagle is ideal for use by ground maintenance personnel and landscape managers that require a fully automated, “Smart” ET weather-based irrigation controller.

Water Days for each program

Can be based on a seven-day cycle, a skip-by-day cycle or odd/even water days

Configurable Master Valve Type

To select either a normally open master valve or a normally closed master valve

Evapotranspiration (ET) based scheduling

Maximizes water saving and irrigation efficiency

Flow sensing and control

Monitors system flow and responds to upper, lower, unscheduled and no flow conditions

Four independent programs

With five selectable start times for a total of 20 possible irrigation cycles per day

Programmable Master Valve

To utilize and control a master valve on a per program basis

Configurable Master Valve Type
Normally open master valve or a normally closed master valve
Controllable Programs
Four independently controllable irrigation programs with five selectable start times for a total of 20 possible irrigation cycles per day
CUL Listed
FCC
Input Power Required
105-130 V ac, 50/60 Hz, 5 amp maximum, 1 amp idle
Output Power
24 V ac 1.5 amps maximum total output or (36 VA) 1 amp per station or master valve
UL Listed
Watering Schedule (Irrigation Schedule)
  • Seven day cycle
  • Skip-by-day cycle
  • odd/even water days

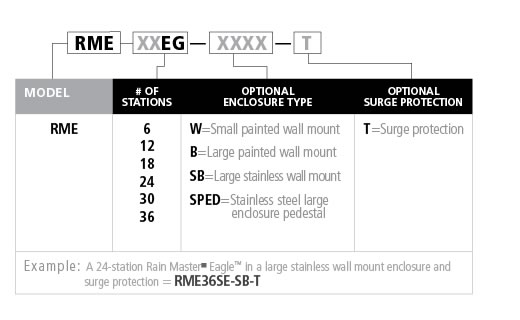

Dimensions Description
Station EG model
H: 10”, W: 13”, D: 4½”
Station EG-B & SB model
H: 17½”, W: 13”, D: 4½”
Station SPED model
H: 34”, W: 16”, D: 16”
Built-in remote control capability with Pro MaxTM Remote
Flow sensor (Brass & Plastic)
Heavy-duty lighting protection (T-optional)
RM-WETHR-ETRS: Weather station for direct ET measurements
