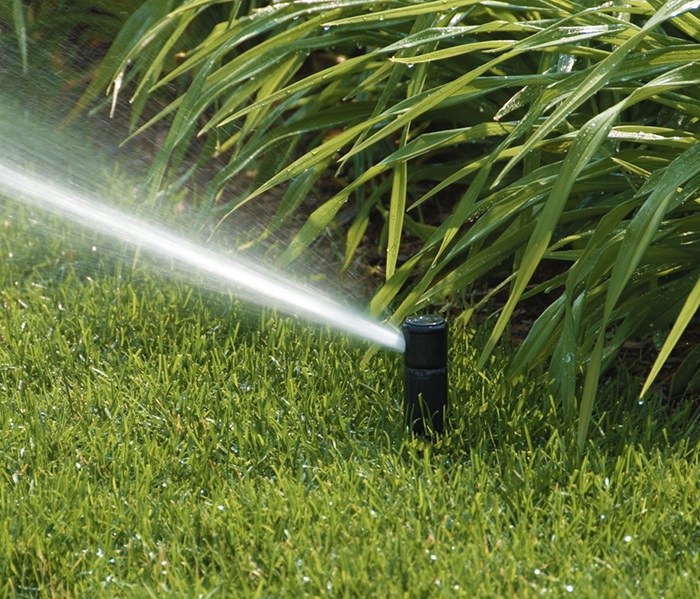

Rapidly becoming a contractor favorite, the 430R rotor from Irritrol® offers everything you would expect from a ½” rotor. When your application calls for more than ordinary spray heads, but not enough for large rotors, we offer the 430R. With a familiar arc setting and the ability to quick check the left and right stops, the 430R is sure to save time on installation.
Adjustable Arc Range
40° to 360°
Flow Range
.8 – 3.4 GPM
Inlet
½” female-threaded NPT
MaximumOperatingPressure
60 psi
Nozzle Trajectory
25°
Nozzles
5 interchangeable
Overall Height (Retracted)
6”
Radius
20’ to 35’
Riser Height
4”
Warranty
2 year

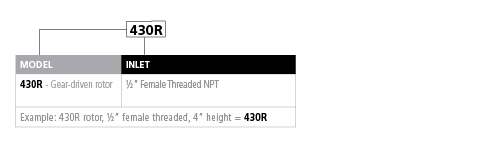

Models Description
430R 1/2" inlet with 4" pop-up
