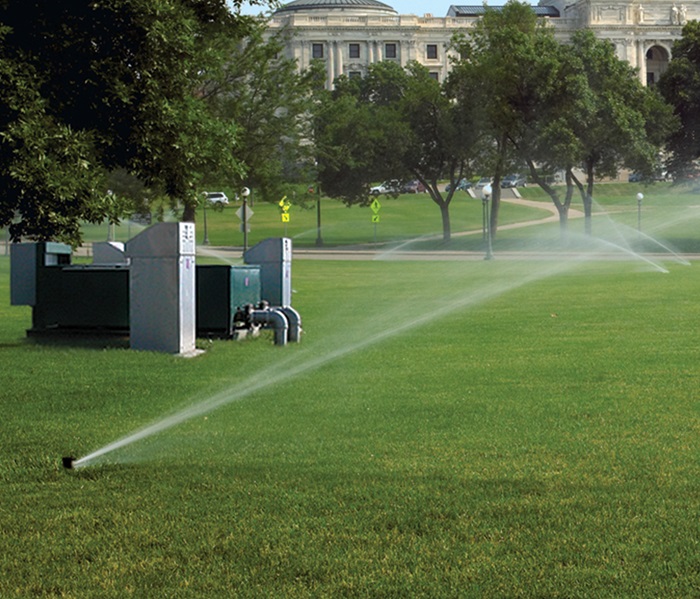

The Irritrol® Platinum Sport Series rotor is designed for reliable performance and superior coverage in light commercial and commercial applications. A full 5¾-inch pop-up height provides superior coverage in tall grass, while full- and part-circle operation in one unit reduces inventory requirements and increases convenience. Add to this a choice of seven nozzle sizes and it’s easy to see why the Platinum Sport Series is quickly becoming an industry favorite.
Adjustable part-circle and unidirectional full-circle coverage in one unit (45º-360º)

Reduces inventory requirements

ArcView arc indicator

Simplifies adjustments

Automatic arc return

Protects against tampering and vandalism

Water-lubricated gear drive assembly

Enhances reliability

Top adjust, wet or dry

For fast, convenient installation

Standard rubber cover

Provides added protection against debris and keeps playing areas safe

Optional stainless steel riser

Helps to deter vandalism and provides longer life

Reversible check valve

Eliminates low-head drainage

Adjustable Arc Range
45º-360º (unidirectional at 360º)
Flow Rate
6.8-30.5 GPM
Inlet
1" threaded NPT or 1" BSP
Nozzle Trajectory
25°
Precipitation Rate
.62-1.42 inches per hour
Radius
46'-75'
Recommended Operating Pressure
70 psi

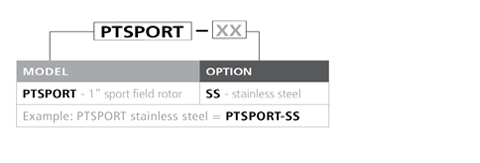

Models Description
PTSPORT 1” inlet sport field rotor
PTSPORT-SS 1” inlet, stainless steel sport field rotor
PTSPORT-NP 1” inlet sport field rotor w/recycled purple cover
PTSPORT-NP-SS 1” inlet stainless steel with recycle purple cover
Dimensions Description
Pop-up height to nozzle 5"
Body height 8.8"
Rubber cover diameter  2.2"
Body diameter 2.7"
