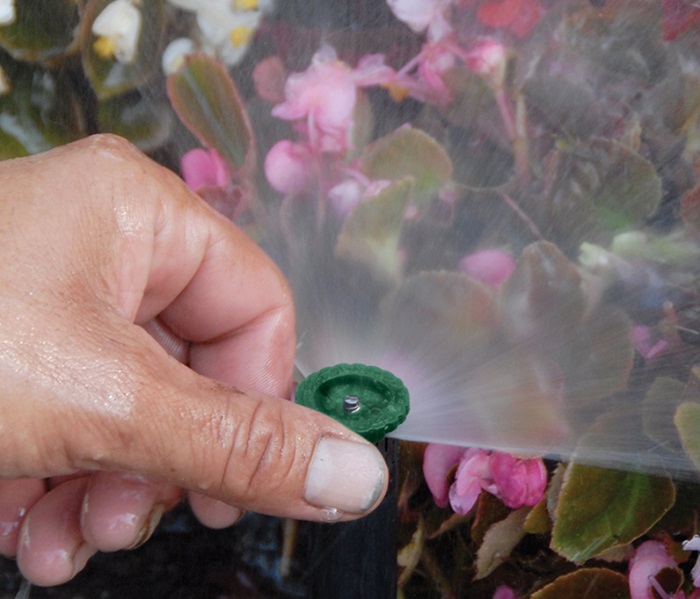

Featuring an exclusive “Smart Grip” head design that requires no tools, Irritrol® Pro-VAN nozzles provide the industry’s easiest 0° to 360° arc adjustment–even when wet–while ensuring precision adjustment for pinpoint coverage. No more dry spots on the lawn. No more wasted water on sidewalks or driveways. Pro-VANs are available in five radii, from 8' to 17', and each allows for up to a 25% radius reduction for even further fine tuning. Plus, because each nozzle is compatible with all Irritrol spray heads, as well as any male-threaded riser in the industry, nozzle inventory can be dramatically reduced. Additional features include a visible left-stop arrow at the top of the nozzle to ensure setting accuracy and color-coding for easy radius identification.
Flow Rate
0.53 - 4.60 GPM
MaximumOperatingPressure
75 psi
Recommended Operating Pressure
20-50 psi

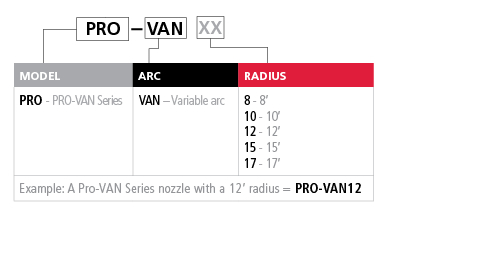

Models Description
PRO-VAN8

8’ variable arc pattern

PRO-VAN10 10’ variable arc pattern
PRO-VAN12 12’ variable arc pattern
PRO-VAN15 15’ variable arc pattern
PRO-VAN17

17’ variable arc pattern
