Irritrol | 100s-series

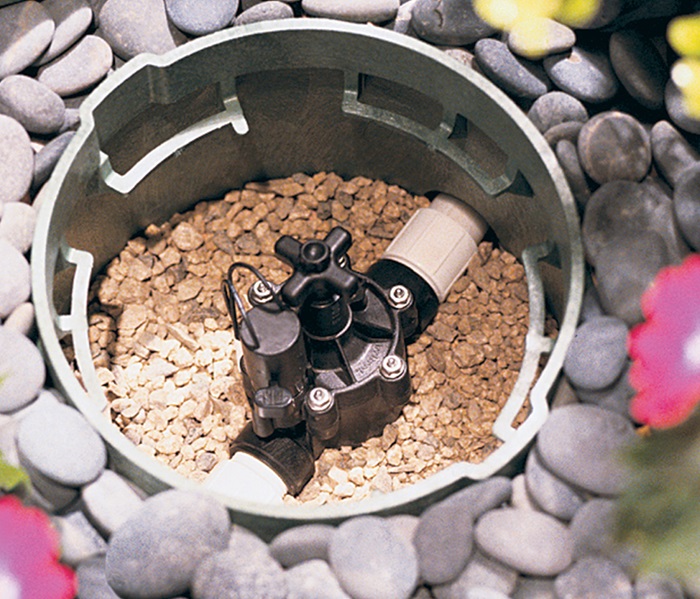

Constructed of heavy-duty, glass-reinforced nylon, high grade stainless steel, brass and EPDM rubber materials, the 100 Series scrubber valves resist clogging and feature a patent-pending continuous scrubbing mechanism to actively fight dirt, algae and other particles from disrupting the functionality of the valve. The 100 Series scrubber valves are true dirty water irrigation valves, able to handle the harsh chemicals found in dirty water systems, such as chlorines, chloramines and water treated with ozones.

Locate a Distributor

Watch Videos

Key Features

220 psi pressure rating

Prevents water hammer and system damage in high-pressure installations

Accepts OmniReg® modular pressure regulator

Ensures consistent performance

Tough, glass-reinforced nylon, stainless steel and brass construction

Withstands high temperatures and system surges under pressure for long-term reliability

Completely Serviceable and Retrofittable

Diaphragm assembly may be replaced or retrofitted to previous models

Continuous Scrubbing Feature

Actively cleans the metering device for consistent valve operation

Externally removable self-cleaning metering system

Ensures consistent performance in recycled-water applications

Fabric-reinforced EPDM diaphragm and EPDM seat seal

Designed to operate in virtually all water applications

Internal and external bleed (flush mode)

Allows for manual operation

Rugged Internal Plastic and Stainless Steel Parts

Scrubber fan, nut and metering system chlorine and chemical resistant

5-year warranty

Specifications

Flow Range 5-300 GPM
Holding Current .2 amp
Holding Volt-Amp 24 V ac-4.8 VA
Inrush Current .4 amp
Inrush Volt-Amp 24 V ac-9.6 VA
Solenoid 24 V ac

Models & Dimensions

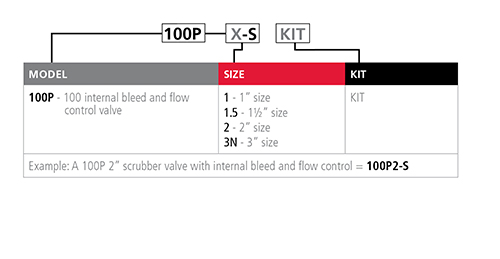

Models	Description
100P1-S	1” internal bleed, scrubber valve
100P1.5-S	1½” internal bleed, scrubber valve
100P2-S	2” internal bleed, scrubber valve
100P3N-S	3” internal bleed, scrubber valve
100P1-S-KIT	1” scrubber diaphragm kit
100P1.5-S-KIT	1½” scrubber diaphragm kit
100P2-S-KIT	2” scrubber diaphragm kit
100P3N-S-KIT	3” scrubber diaphragm kit

Dimensions	Description
100P1-S	H: 6 ¾”, W: 3 5/8”, D: 4 ¾”
100P1.5-S	H: 7¼”, W: 3 5/8”, D: 4 ¾”
100P2-S	H: 9 1/2”, W: 6 1/8”, D: 7 ¾”
100P3N-S	H: 11 ¾”, W: 6 ¾”, D: 9”
