200B Series


The Irritrol® 200B Series globe/angle valves have built their popularity on a proven record of reliability and a reputation for offering valuable features at an affordable price. The 200B Series provides manual internal and external bleed, heavy-duty, UV-resistant PVC construction, stainless steel hardware, a double-beaded diaphragm and a captive solenoid plunger.


Locate a Distributor

Key Features

Accepts OmniReg® modular pressure regulator

Ensures consistent performance

Unique three-way stainless steel Bonnet

Screws accept Phillips, flat-blade and hex-driver tools for easy servicing without removal from the system

Slow-closing design

Reduces water hammer and resulting stress on the system

Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction

For long-term reliability

High-strength ribbed bonnet and bottom inlet

Increases durability

Internal and external bleed (flush mode)

Allows for manual operation

Rugged, double-beaded SANTOPRENE® diaphragm

Ensures a leak-proof seal

5-year warranty

5-year warranty

Flow Range
5-120 GPM
Holding Current
.2 amp
Holding Volt-Amp
24 V ac-4.8 VA
Inrush Current
.4 amp
Inrush Volt-Amp
24 V ac-9.6 VA
Solenoid
24 V ac

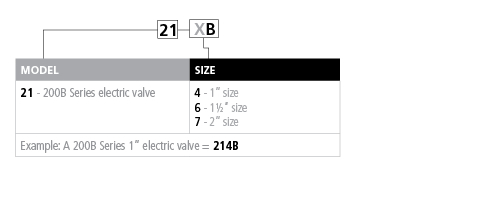

Models Description
214B 1” NPT threads, flow control
216B 1½” NPT threads, flow control
217B 2” NPT threads, flow control
Dimensions Description
214B H: 6 ½”, W: 2 ½”, L: 4 ½”
216B H: 7¾”, W: 4 ¼”, L: 5 ½”
217B H: 8 ¾”, W: 5 ¼”, L: 6 ¼”

Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
Weatherproof gauge (SPK-100)
