The Irritrol® 205 Series 1-inch plastic valve is the irrigation industry’s time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion- and UV-resistant PVC, the 205 Series features a high-flow, low-friction-loss-design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add to this valve’s wide popularity.

Available in female NPT or slip configurations (no male pipe adapter required)

Will handle all regional installation variances

Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction

For long-term reliability

High-flow, low friction loss design

More efficient system design and low-flow capability

Optional flow control

Allows precise adjustment and manual shutoff

Rugged, nylon-reinforced Buna-N diaphragm

Ensures a leak-proof seal

Flow Range
.25-30 GPM
Holding Current
.2 amp
Holding Volt-Amp
24 V ac-4.8 VA
Inrush Current
.4 amp
Inrush Volt-Amp
24 V ac-9.6 VA
Solenoid
24 V ac

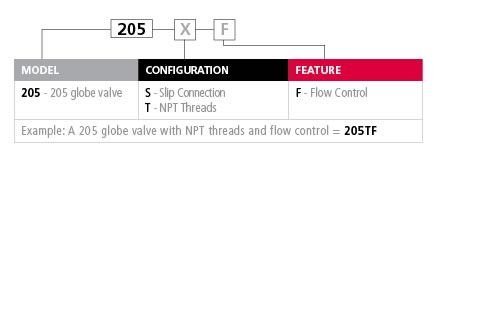

Models Description
205S 1” slip connection
205SF 1” slip connection with flow control
205T 1” NPT threaded connection
205TF 1” NPT threaded connection with flow control
Dimensions
H: 5 1⁄8”, W: 2 ¾”, L: 5”
Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
