The Irritrol® 2400 Series globe and 2600 Series angle valves are popular with users because of the convenience of their threaded bonnets, the reliability of their double-beaded diaphragm and the durability of their heavy-duty, corrosion and UV-resistant PVC construction. Fast and easy to install and service, these 1-inch residential plastic valves offer an encapsulated solenoid, internal/external bleed, an optional flow control feature, and are available in multiple configurations.

Available in multiple configurations—female NPT, slip, male x male and male x barb

Will handle all regional installation variances (2600 available with NPT threads only)

Threaded bonnet design

Allows easy servicing without removal from the system (DPR models)

Full stainless-steel metering system

Allows for consistent valve operation

Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction

For long-term reliability

Internal and external bleed (flush mode)

Allows for manual operation

Rugged, double-beaded SANTOPRENE® diaphragm

Ensures a leak-proof seal

Flow Range
.25-30 GPM
Holding Current
.2 amp
Holding Volt-Amp
24 V ac-4.8 VA
Inrush Current
.4 amp
Inrush Volt-Amp
24 V ac-9.6 VA
Solenoid
24 V ac

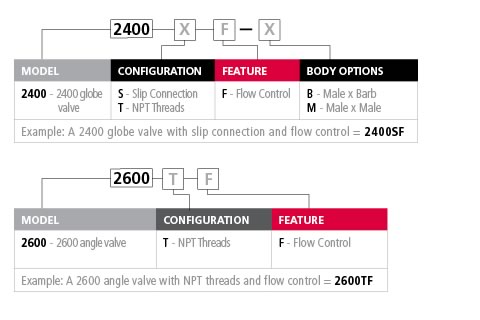

Models Description
2400S 1” globe slip connection valve
2400SF 1” globe slip connection with flow control
2400T 1” globe NPT threaded connection
2400TF 1” globe NPT threaded connection with flow control
2400T-B 1” globe male x barb connection
2400TF-B 1” globe male x barb connection with flow control
2400T-M 1” globe male x male connection
2400TF-M 1” globe male x male connection with flow control
2600T 1” angle NPT threaded connection
2600TF 1” angle NPT threaded connection with flow control
Dimensions Description
2400 H: 5 1⁄8”, W: 3”, L: 4”
2600 H: 6 ½”, W: 3”, L: 3¾”
Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
Threaded bonnet wrench (2400-45)
