2500 Series


The Irritrol® 2500 Series is a classic example of making a great valve even better. Irritrol has taken its proven 205 Series of valves to the next level by adding a full menu of features including a patented “floating metering system” for consistent performance in dirty water applications and a rugged, double-beaded diaphragm for long-term performance with no leakage. The 2500’s manual internal bleed enables the valve to be opened without filling the valve box with water. And servicing is made easy and efficient with captured screws.


Locate a Distributor

Key Features

Available in female NPT or slip configurations (no male pipe adapter required)

Will handle all regional installation variances

Self-aligning bonnet with captured hex/Phillips screws

Permits fast and easy servicing without removal from the system (APR models)

Full stainless-steel metering system

Allows for consistent valve operation

Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction

For long-term reliability

High-flow, low friction loss design combined with low-flow capability

Can handle a wide range of applications

Internal and external bleed (flush mode)

Allows for manual operation

Patented “floating metering system”

Allows this valve to easily handle dirty water

Rugged, double-beaded SANTOPRENE® diaphragm

Ensures a leak-proof seal

5-year warranty

5-year warranty

Flow Range
.25-30 GPM
Holding Current
.2 amp
Holding Volt-Amp
24 V ac-4.8 VA
Inrush Current
.4 amp
Inrush Volt-Amp
24 V ac-9.6 VA
Solenoid
24 V ac

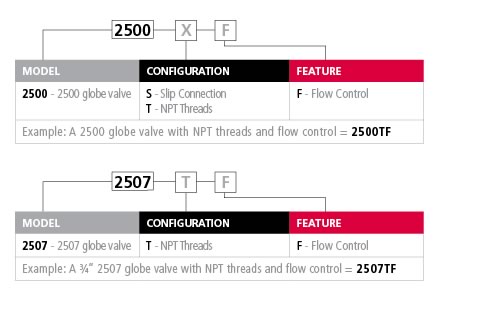

Models Description
2500S 1” slip connection
2500SF 1” slip connection with flow control
2500T 1” NPT threaded connection
2500TF 1” NPT threaded connection with flow control
2507TF ¾” NPT threaded connection with flow control
Dimensions Description
2500 H: 5 1⁄8”, W: 2 3⁄4”, L: 5”
2507 H: 5 1⁄8”, W: 2 3⁄4”, L: 5”

Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
