The Irritrol® anti-siphon 2700 Series valves offer optimum performance, reliability and ease-of-use for a wide variety of residential applications. Featuring anti-siphon capability, this family of plastic valves also features flow control for precise flow adjustment, manual shutoff and a built-in atmospheric vacuum breaker to eliminate back siphonage. Available in electric and manual models, these valves also feature a flow range from .25 to 30 GPM and a pressure range from 10 to150 psi.

Threaded bonnet design

Allows easy servicing without removal from the system (DPR models)

Self-aligning bonnet with captured hex/Phillips screws

Permits fast and easy servicing without removal from the system (APR models)

Full stainless-steel metering system

Allows for consistent valve operation

Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction

For long-term reliability

Internal and external bleed (flush mode)

Allows for manual operation

Patented “floating metering system” (APR models)

Consistent valve operation

Patented, tamper-resistant flow-control mechanism

Allows for precise water flow (DPR models)

Rugged, double-beaded SANTOPRENE® diaphragm

Ensures a leak-proof seal

ASSE
CSA Listed
Flow Range
.25-30 GPM
Holding Current
.2 amp
Holding Volt-Amp
24 V ac-4.8 VA
IAPMO
Inrush Current
.4 amp
Inrush Volt-Amp
24 V ac-9.6 VA
Solenoid
24 V ac

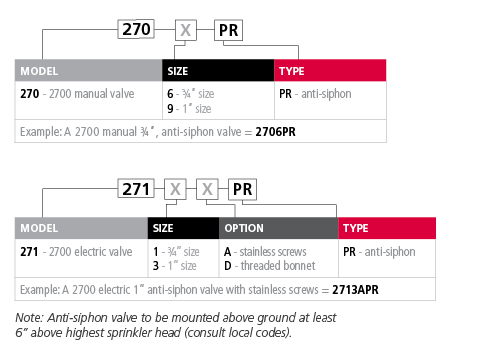

Models Description
2711APR ¾" electric, flow control, stainless screw bonnet
2713APR 1" electric, flow control, stainless screw bonnet
2711DPR ¾" electric, flow control, threaded bonnet
2713DPR 1" electric, flow control, threaded bonnet
2706PR ¾" manual
2709PR 1" manual
Dimensions Description
2706 H: 4 7⁄8”, W: 2 5⁄8”, L: 5 ¾”
2709 H: 5 1⁄16”, W: 3 1⁄8”, L: 6 ¼”
2711 H: 5 5⁄8”, W: 3”, L: 6 ¼”
2713 H: 6”, W: 3”, L: 6 7⁄8”
Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
