700 Series


Featuring a straight-through flow path that dramatically reduces pressure loss, the Irritrol® UltraFlow Series of glass-filled nylon valves leads the industry in long-term performance and reliability. With a flow range from .1 to 180 GPM and a self-cleaning, 150-mesh stainless steel filter screen, these unique valves are ideal for a multitude of potable and dirty water applications. A glass-reinforced nylon body and bonnet, stainless steel spring and hardware, and a rugged, nylon-reinforced Buna-N diaphragm add an extra dimension of toughness to this very durable family of valves.


Locate a Distributor

Key Features

Tough, glass-reinforced nylon, stainless steel and brass construction

Withstands high temperatures and system surges under pressure for long-term reliability

Unique straight-through flow path

Provides extremely low friction loss

Slow-closing design

Reduces water hammer and resulting stress on the system

High and low-flow operation

Ensures consistent performance in a variety of applications

Self-flushing, 150-mesh, stainless steel filter screen on 1-, 1½- and 2-inch models

Provides consistent operation

5-year warranty

5-year warranty

Flow Range
.1-180 GPM (700B-.75 & 700-1 can operate at .1 GPM)
Holding Current
.2 amp
Holding Volt-Amp
24 V ac-4.8 VA
Inrush Current
.4 amp
Inrush Volt-Amp
24 V ac-9.6 VA
Solenoid
24 V ac

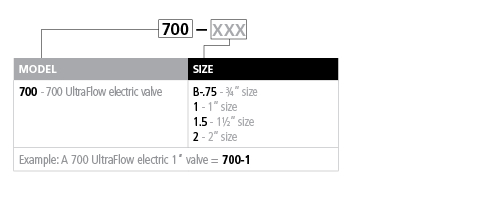

Models Description
700B-.75 ¾" internal bleed flow control
700-1 1" internal bleed flow control
700-1.5 1½" internal bleed flow control
700-2 2" internal bleed flow control
Dimensions Description
700B-.75 H: 4 ½”, W: 1 9⁄10”, D: 3 2⁄5”
700-1 H: 4 ½2”, W: 3”, D: 4 3⁄5”
700-1.5 H: 5 ½”, W: 4 3⁄8”, D: 6 ¼”
700-2 H: 7”, W: 5 ½”, D: 8”

OmniReg 5-100 psi regulator (OMR-100)
OmniReg 5-30 psi regulator (OMR-30)
Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
Weatherproof gauge (SPK-100)
